Storage Tank
Storage Tank

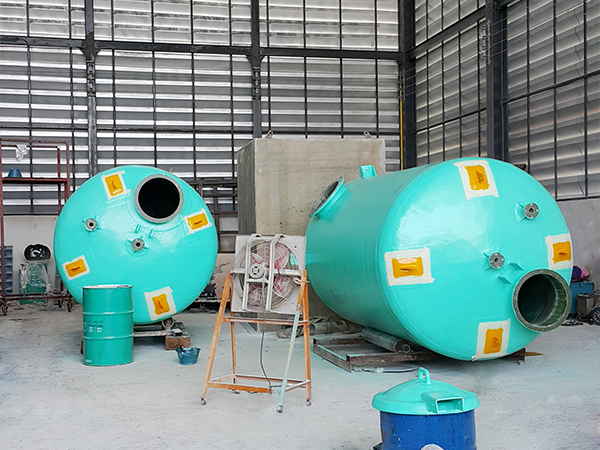

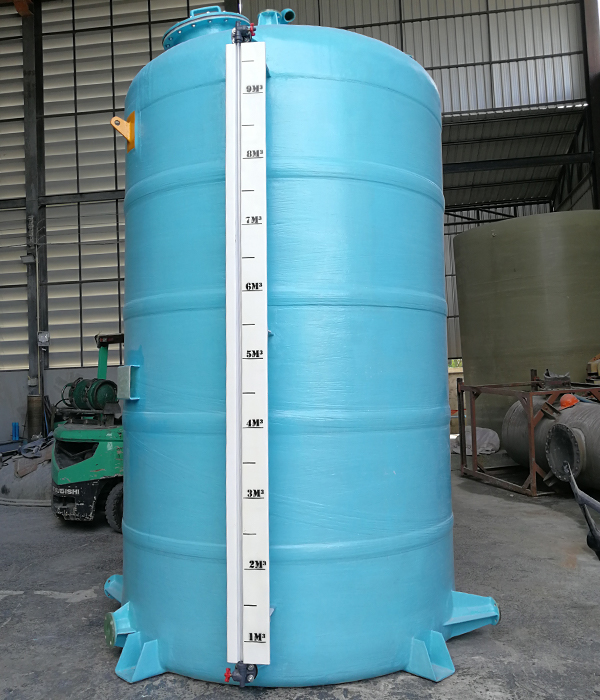

The storage tank is a tank made of fiberglass and polyester resin. It can be applied in various industries, such as food, cosmetics, plating, agriculture, and chemicals.
| Capacity ( m³) | Diameter(Ø) mm. | Height (H) mm. | Thickness (mm.) | ||
| t1 | t2 | t3 | |||
| 1.0 | 800 | 2,000 | 4 | 4 | 4 |
| 1.0 | 1,000 | 1,300 | 4 | 4 | 4 |
| 2.0 | 1,000 | 2,600 | 4 | 4 | 4 |
| 3.0 | 1,500 | 1,800 | 4 | 4 | 4 |
| 5.0 | 1,800 | 2,000 | 4 | 4 | 4 |
| 8.0 | 1,800 | 3,200 | 4 | 4.5 | 5 |
| 8.0 | 2,000 | 2,600 | 4 | 4.5 | 5 |
| 10.0 | 2,000 | 3,200 | 5 | 5 | 5 |
| 15.0 | 2,500 | 3,200 | 5 | 5 | 6 |
| 20.0 | 2,500 | 4,000 | 5 | 5 | 7 |
| 25.0 | 3,200 | 3,200 | 5 | 5 | 7 |
| 30.0 | 3,200 | 3,800 | 5 | 5 | 8 |
| 50.0 | 3,200 | 5,000 | 6 | 7 | 9 |
| 80.0 | 3,500 | 8,500 | 8 | 12 | 14 |
| 90.0 | 3,500 | 9,500 | 10 | 14 | 16 |
We are ready to design, manufacture and sell high-quality storage/vertical tanks made by Filament Winding machines in accordance with ASTM standard.
In addition, you can also choose colors for your FRP tanks according to your needs.
If you are interested in this kind of product, you can contact us immediately.
We have experts ready to give advice to all clients.
